Water extinguishers permanent pressure - Frost proof

WN6AF, WN9AF - Frost protected down to -30 °C and fluorine free

Economy Line

The DÖKA permanent pressure water fire extinguishers are equipped with an extinguishing agent cylinder made of quality sheet steel. The high-quality outer polyester resin coating is tough and weatherproof and protects the extinguishing agent container from corrosion. Inside, the extinguishing agent container is protected from corrosion by a thermoplastic polymer inner coating. The metal fitting with pressed brass body is equipped with a pressure gauge and a separate test valve.

Aqueous solution

The extinguishing effect is based on the heat binding capacity (heat capacity) of the water. The seat of the fire is cooled down considerably and the combustion is stopped. The extinguishing agent consists of water with and the addition of salts. This means that our water fire extinguishers are frost-proof down to -30 ° C. The extinguishing agent is completely free of PFOS and PFOA.

WN6AF

Capacity: 6 ltr. Aqueous solution
Rating: 13A
Dimensions H x W x D ca. mm: 525 x 270 x 170
Weight ca. kg: 10,5
Throw range ca. m: 4-6
Discharge time ca. Sek.: 54
Operating temp. °C: -30 to +60
MED 2014/90/EU: No

Question about this product?

Features

  • Fire class A
  • Electrical systems
  • DIN EN 3 approval
  • Frost proof
  • Fluorine free
  • Made in Germany

Areas of application
Outdoor areas, wood, paper, textile stores and sales areas, archives, agricultural and wood processing companies

Fire class A, combustible solid materials
such as wood, car tires, textiles

Electrical systems
Up to 1.000 V, minimum distance 1 meter

Highlights

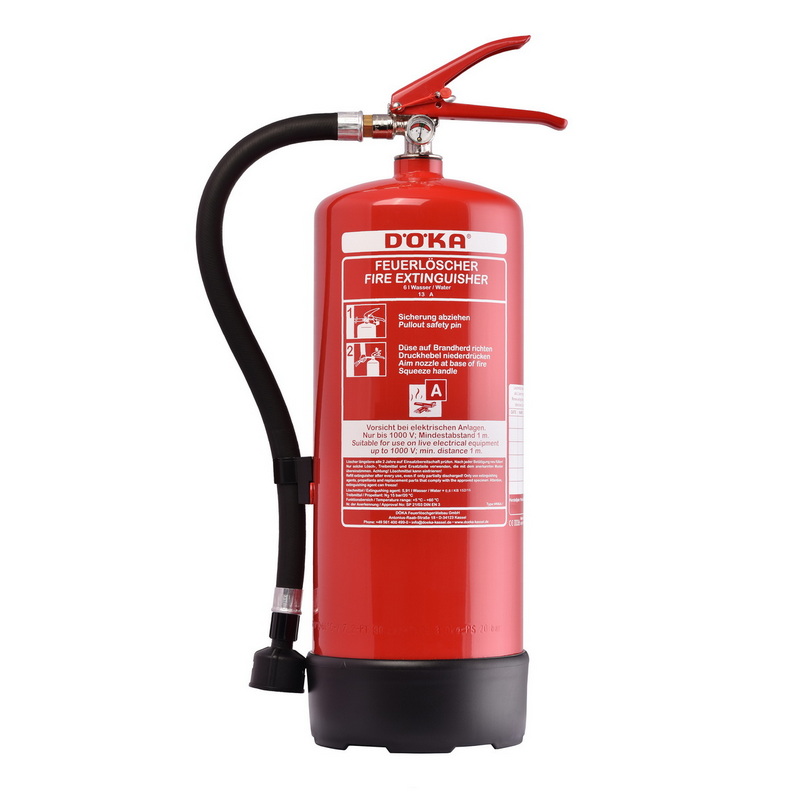

DÖKA water fire extinguisher WN6AF
  • Frost protected
  • Pressure lever valve with brass body
  • Pressure gauge and separate test valve
  • Cylinder with polyester resin coating
  • Foot ring optional
  • Bilingual operating screen German / English


Quality features

Pressure lever valve with brass body, manometer and test valve

Nickel-plated brass fittings, the handle and the pressure lever are made of powder-coated steel. A manometer shows the functionality of the fire extinguisher at all times. A separate test valve simplifies service.
