Cabinets AFS-Series

Steel cabinets for wall mounting



The wallmounted protective cabinets of the DÖKA AFS series for fire extinguishers. Made of galvanized sheet steel, the frame is folded vertically on all sides, with an inserted base and a sloping roof protruding to the side and front. The door is bevelled on all sides and flush with the frame, door hinge with 2 slots. The door opens 180 ° for easy removal of the fire extinguisher. Incl. Information sign according to ISO 7010 "Fire extinguisher".

The protective cabinets of the DÖKA AFS series effectively protect fire extinguishers indoors and outdoors from dust, dirt, rain and solar radiation.

AFS6/12

The DÖKA AFS6 /12 protective cabinet is suitable for holding a portable fire extinguisher with a content of up to 12 kg (with the exception of 5 kg CO2 fire extinguishers).
Door with plastic handle, stainless steel spring lock.

Dimensions (external dimensions HxWxD): 720 x 340 x 220 mm
Article no: 2050-200

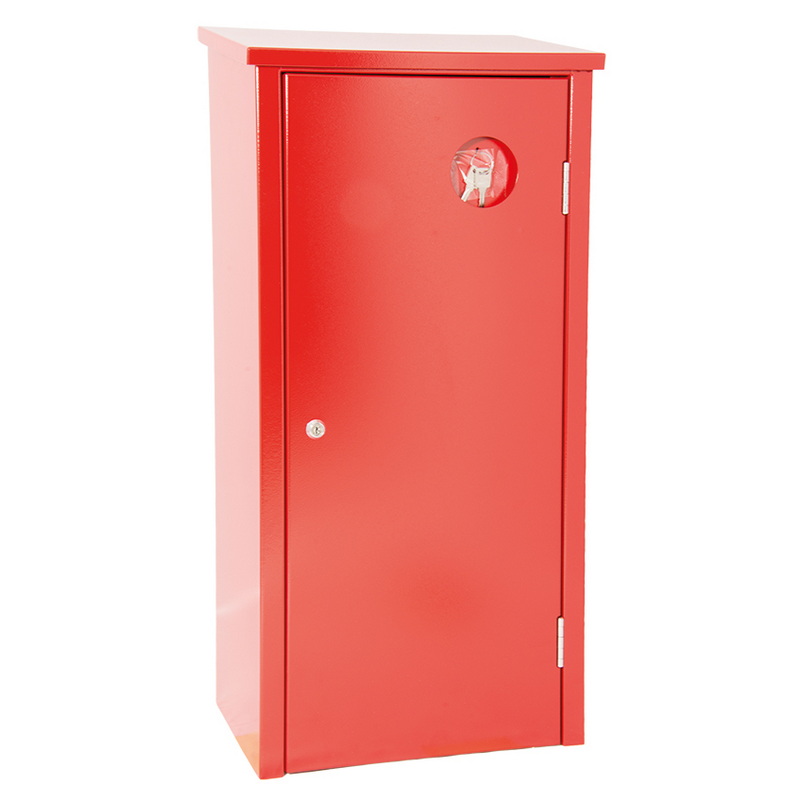

AFS-SZ6/12

The DÖKA AFS-SZ6 /12 protective cabinet is suitable for holding a portable fire extinguisher with a content of up to 12 kg (excluding 5 kg CO2 fire extinguisher).
Door with cylinder lock and key box in the door.

Dimensions (external dimensions HxWxD): 720 x 340 x 220 mm
Article no: 2050-300

AFS-SZ-K6

The DÖKA AFS-SZ-K6 protective cabinet is suitable for holding a portable fire extinguisher up to 900 mm high (5 kg carbon dioxide fire extinguisher).
Door with cylinder lock and key box in the door.

Dimensions (external dimensions HxWxD): 930 x 340 x 220 mm
Article no: 2050-320
