Powder extinguishers cartridge operated DS-series

Composite valve and universal handle

The  valves  of  the  DS-series  are  made  of  glass  fiber reinforced composite materials. Metal inlets additionally  reinforce  the  fitting.  The  cap  nut  is  made  of  brass.  The  new  design  of  this  series  of  valves  enables the fire extinguishers to have a lower overall height. Thanks to the extra large, ergonomic handle, the fire extinguisher can be easily carried over a long period of time. A  non-rotating  safety  device  enables  the  fire  extinguisher to be operated even faster and also has a rotating extinguishing pistol.

The DÖKA cartridge operated powder fire extinguishers of the DS-series with internal propellant cartridge. The fire extinguisher is only put under operating pressure after pulling the securing and depressing the push button when it is in use. This ensures a high level of operational reliability, saves material and minimizes maintenance costs.

ABC dry powder

DÖKA fire extinguishers with ABC extinguishing powder (ember fire powder) are versatile and superior to other extinguishing agents in their extinguishing effect on standard objects. The extinguishing effect takes place suddenly. Special barrier effects prevent re-ignition in solid fires, e.g. B. wood. The extinguishing powder cloud unfolds over a large area and protects against smoke and radiant heat.
The extinguishing powder used in DÖKA powder fire extinguishers impresses with an excellent extinguishing effect on fires of fire classes ABC.
ABC extinguishing powder is electrically non-conductive, so it can also be used in electrical systems in accordance with VDE 0132. It is environmentally friendly and can be recycled into fertilizer after its useful life.

Gi6DS-03

Capacity: 6 kg ABC-dry powder
Rating: 43A / 233B / C
Dimensions H x W x D ca. mm: 510 x 295 x 160
Weight ca. kg: 10,2
Throw range ca. m: 7
Discharge time ca. Sek.: 22
Operating temp. °C: -30 to +60

Features

Areas of application
garages, tire stores, heating systems, chemical industry, refinerie.

Fire class A, combustible solid materials
such as wood, car tires, textiles

Fire class B, flammable liquids
such as alcohols, petrol, paint, oil

Fire class C, flammable gases
industrial and natural gases

Electrical systems
Up to 1.000 V, minimum distance 1 meter

Highlights

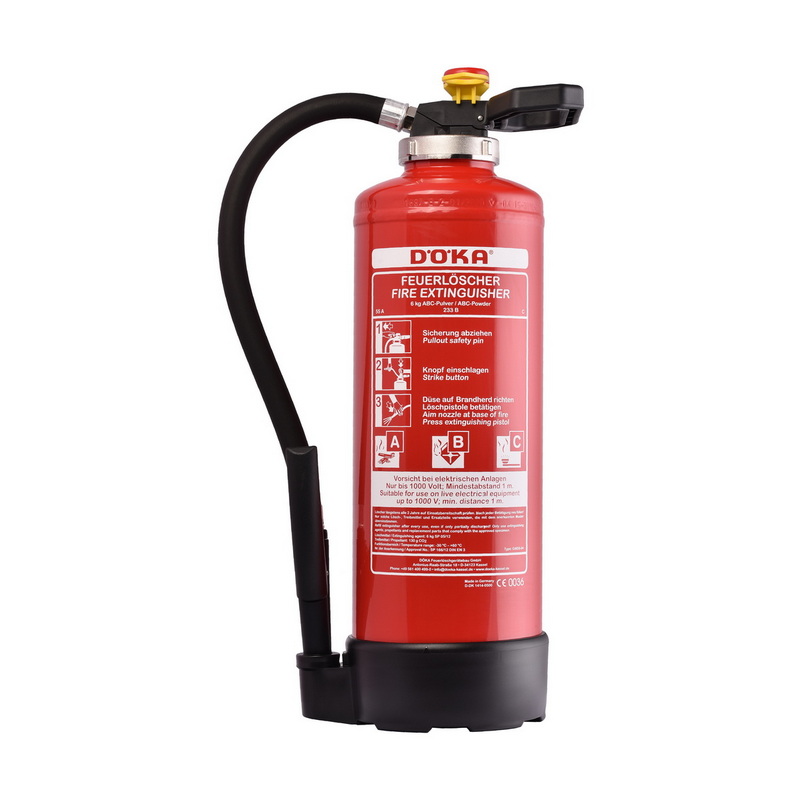

DÖKA powder fire extinguisher Gi6DS-04
  • High extinguishing performance
  • Cylinder with polyester resin coating
  • Turnable pistol
  • Foot ring with hose adapter to protect the bottom of the cylinder
  • Bilingual operating screen German / English


Quality features

Push button valve with universal handle

Base body made of fiberglass-reinforced composite material, reinforced with additional metal inlets.
