Cartridge operated CS-series

Wi6CS, Wi9CS - Fluorine free

Composite valve

The push button valve of the DÖKA CS series are made of fiberglass-reinforced composite materials. Metal inlets strengthen the fitting. The union nut is made of brass. The pressure resistance of the valve body far exceeds the values required by the standard.

The control elements of the CS series, such as the strike button, safety device and handle, are designed in such a way that the fire extinguisher can also be operated with gloves without any problems. The rotating extinguishing pistol rounds off the perfect handling.

The DÖKA cartridge operated water fire extinguishers of the CS-series with internal propellant cartridge. The fire extinguisher is only put under operating pressure after pulling the securing and depressing the push button when it is in use. This ensures a high level of operational reliability, saves material and minimizes maintenance costs.

Aqueous solution

The extinguishing effect is based on the heat binding capacity (heat capacity) of the water. The seat of the fire is cooled down considerably and the combustion is stopped. The extinguishing agent consists of water with and the addition of highly effective additives. As a result, our water fire extinguishers achieve excellent ratings in fire class A. The extinguishing agent is completely free of PFOS and PFOA.

Features

Fire class A, combustible solid materials
such as wood, car tires, textiles

Electrical systems
Up to 1.000 V, minimum distance 1 meter

Areas of application
Administration and production areas, car workshops, sales rooms, guest areas in hotels and restaurants, schools, public areas, cinemas, discos, private areas

Technical data

Capacity: 6 ltr. Aqueous solution
Rating: 34A
Dimensions H x W x D ca. mm: 560 x 235 x 170
Weight ca. kg: 10,2
Throw range ca. m: 9-11
Discharge time ca. Sek.: 41
Operating temp. °C: 0 to +60

Question about this product?

Highlights

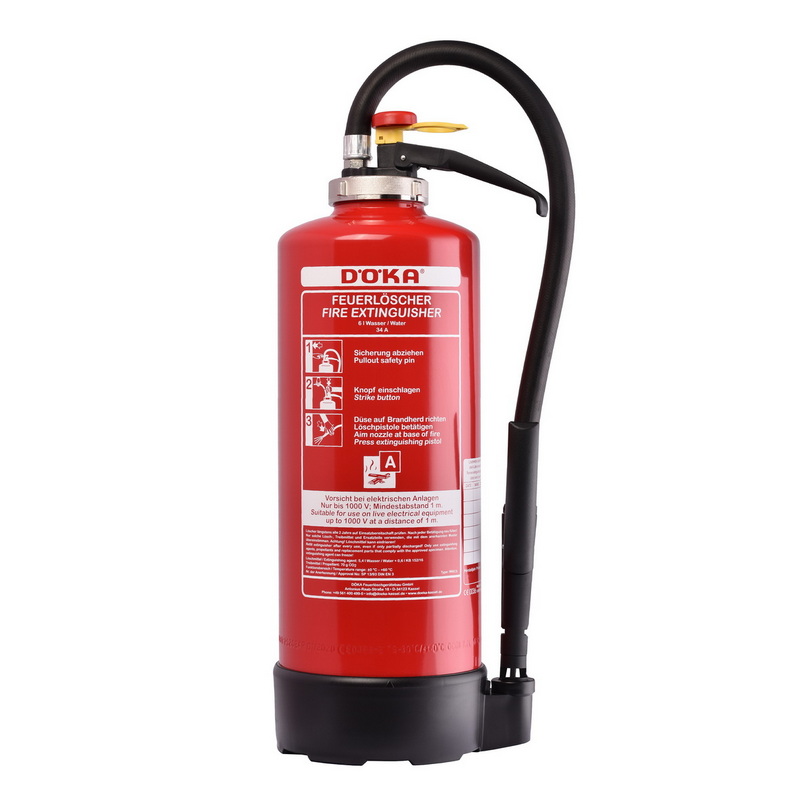

DÖKA water fire extinguisher Wi6CS
  • High extinguishing performance
  • Cylinder with polyester resin coating
  • Turnable pistol
  • Foot ring with hose adapter to protect the bottom of the cylinder
  • Bilingual operating screen German / English


Quality features

Base body made of fiberglass-reinforced composite material, reinforced with additional metal inlets.
