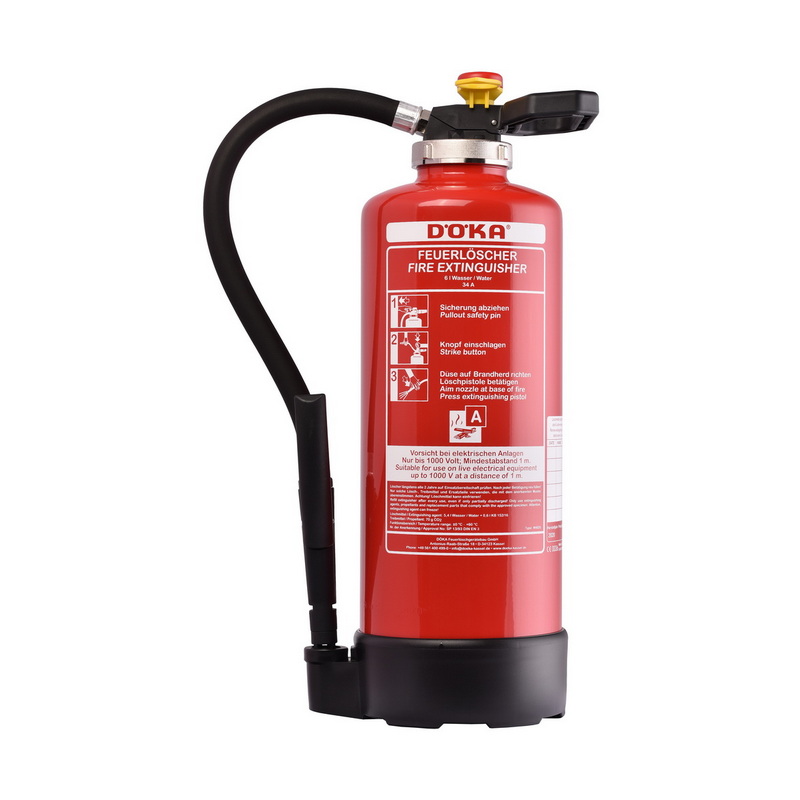

Cartridge operated DS-series

Capacity: 6 ltr. Aqueous solution
Rating: 34A
Dimensions H x W x D ca. mm: 500 x 310 x 170
Weight ca. kg: 10,2
Throw range ca. m: 9-11
Discharge time ca. Sek.: 41
Operating temp. °C: 0 to +60

Capacity: 9 ltr. Aqueous solution
Rating: 43A
Dimensions H x W x D ca. mm: 545 x 290 x 195
Weight ca. kg: 15,0
Throw range ca. m: 9-11
Discharge time ca. Sek.: 76
Operating temp. °C: 0 to +60

The safety valve is installed according to the requirements of the DIN EN 3 standard. It is a spring-loaded pressure relief valve, which releases any impermissible operating pressure and closes it again, thus protecting the container. This means even more security for the user. The safety valve is also mainly made of brass.

The large, ergonomically shaped handle for easy handling of the fire extinguisher. The recessed grips and the curve at the end of the handle prevent your hand from slipping. The handle is big enough to be able to carry the fire extinguisher comfortably even with gloves. For stability and durability, the solid handle is made of fiberglass-reinforced plastic and is attached to the base plate with a stainless steel grooved pin.

The cap nut, like the base plate, is made of nickel-plated brass. It is equipped with pressure relief grooves through which the possibly pressurized extinguishing agent container can be safely depressurized by an expert. There are four cams on the nut for easy opening of the fire extinguisher, for safe, ergonomic use of the tool during service.

The extinguishing agent cylinder made of high-quality sheet steel is provided with a very high quality, resistant polyester resin coating that reliably protects the cylinder against corrosion.

The label is applied using a modern, high-quality screen printing process. The operating screen of the fire extinguisher is printed in two languages, German / English. Large, easy-to-interpret pictograms enable the fire extinguisher to be operated quickly and easily. The warning notices are printed inverted for better perception.

A footring made of impact-resistant HD-PE is used to protect the bottom of the Cylinder and for improved stability. The foot ring is simply placed on the cylinder and can be removed non-destructively for service purposes. A holder for the hose line is integrated in the stand ring and ensures that the fire extinguisher looks attractive.

The high-quality hose is made of durable EPDM synthetic rubber material. Fabric inserts increase the stability and pressure resistance of the hose line. A nickel-plated brass grommet is used for the hose connection to the fitting, which is firmly pressed to the hose line.
Flexible even in the cold - the hose is still flexible even in extreme cold and does not break.

The extinguishing pistol can be freely rotated 360 degrees, which means much more comfort and safety for the user. The large lever enables very good extinguishing agent dosing. The extinguishing pistol has a patented safety valve effect - if the pressure is too high, the pistol opens automatically, which means that the pistol cannot burst.
